Precision-Fabricated ACM Panel System
The PDX Series EVO is a NFPA 285-tested aluminum composite panel system engineered for commercial facades across Oregon and Washington. With a 6061-T6 aluminum extrusion subframe and PVDF Kynar finish coating backed by a 30-year warranty, the Series EVO is specified by architects and contractors throughout the Pacific Northwest for rainscreen cladding, commercial building facades, soffit systems, and column covers. Available with PE, FR, or A2 incombustible core options to meet any fire rating requirement.
Compatible ACM brands include Etalbond, Alucobond, Stacbond, Reynobond, and Alpolic. We can provide any ACM plank wrapped around the extrusion. The double return design eliminates visible rivets for a seamless façade appearance that architects and building owners demand.
- Compatible ACM Brands: Etalbond, Alucobond, Stacbond, Reynobond, Alpolic
- Core Options: PE (Low-Density Polyethylene) | FR (Fire Retardant) | A2 (Incombustible)
- Extrusions: 6061-T6 Aluminum (Mill Finish)
- Finish Coating: Any color, texture, or woodgrain. PVDF Kynar, 30-year warranty.

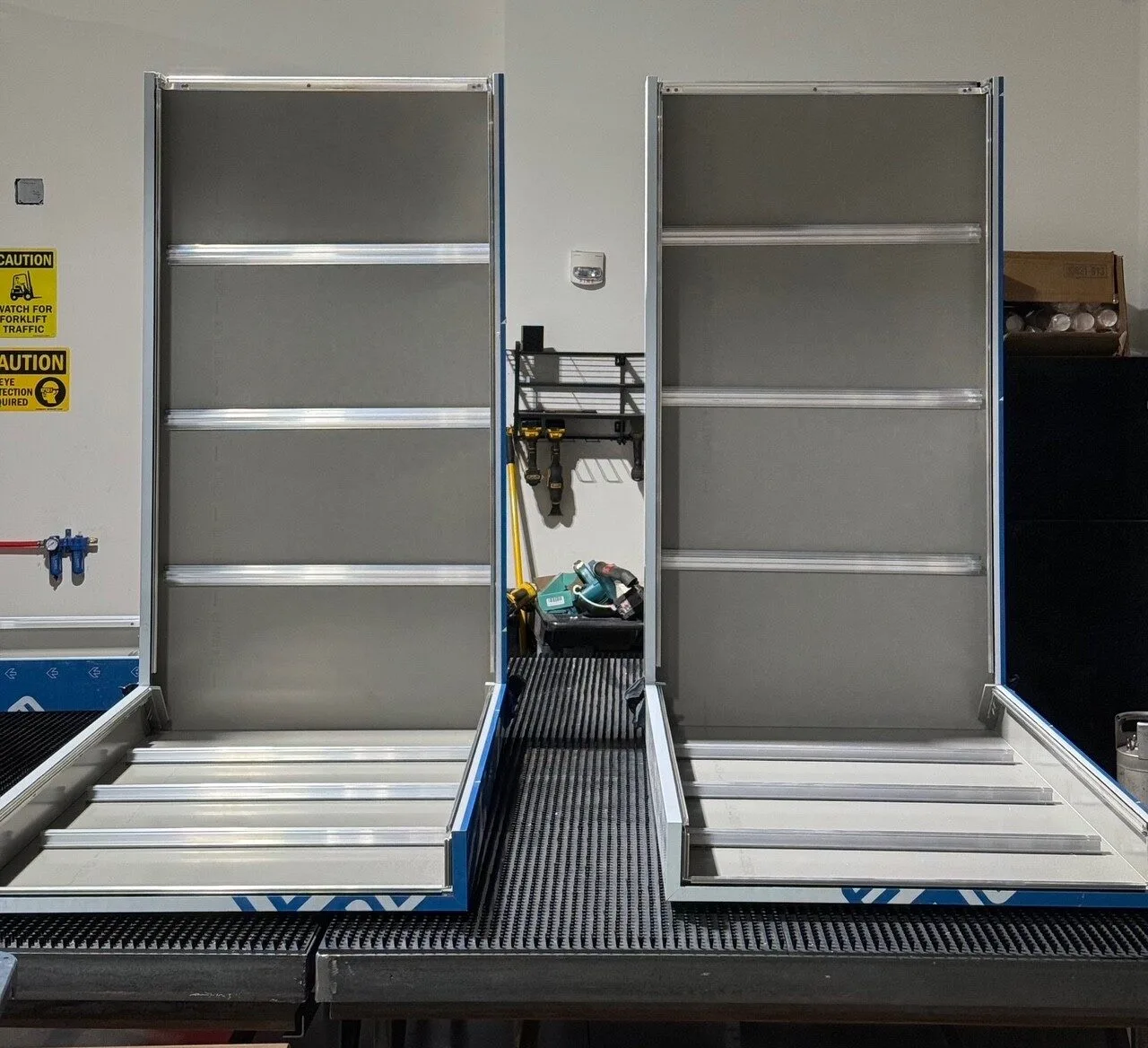

- CNC programmed and cut to exact tolerances
- Shop drawings and material takeoffs included
- Fabricated in Portland, OR. Ships throughout the Pacific Northwest.
Technical Specifications
Verified data from PDX Panels product sheets.
ACM Plank Thickness
4mm (0.157")
Total System Depth
1.75" (face of panel to sub-girts)
Maximum Panel Size
58" × 190"
System Weight
2.3 lb/ft²
Extrusion Alloy
6061-T6 Aluminum (Mill Finish)
Finish Warranty
30-year PVDF Kynar coating warranty
Testing & Ratings
The PDX Series EVO has been independently tested to the following standards. Architects and specification writers can reference these certifications for submittals and project approvals.
Fire Propagation Characteristics
Structural Performance
Air Infiltration
Water Penetration Under Static Air Pressure
Pressure Equalization Behavior Analysis
Water Penetration Resistance Using Dynamic Pressure
Features & Benefits
Why contractors and architects specify the Series EVO system.
Seamless Façade
Double return design eliminates visible rivets for a clean, continuous appearance.
Fire Compliant
NFPA 285 tested and approved. Accepted for Type I and Type II construction.
Durability
Low maintenance with proven longevity in Pacific Northwest conditions.
Custom Finishes
Any color, texture, or woodgrain available with a 30-year PVDF Kynar warranty.
Easy Installation
Engineered for efficiency and adaptability. Individual panels replace without disturbing adjacent panels.
Sustainable
Supports green building initiatives with LEED-qualifying recycled content and regional manufacturing.
LEED Contributions
The PDX Series EVO supports LEED certification credits applicable to green building projects.
MR 4.1 & 4.2 / ISO 14021
Recycled Content
SS7.2
Cool Color Paint System
MR 5
Regional Manufacturing
Applications

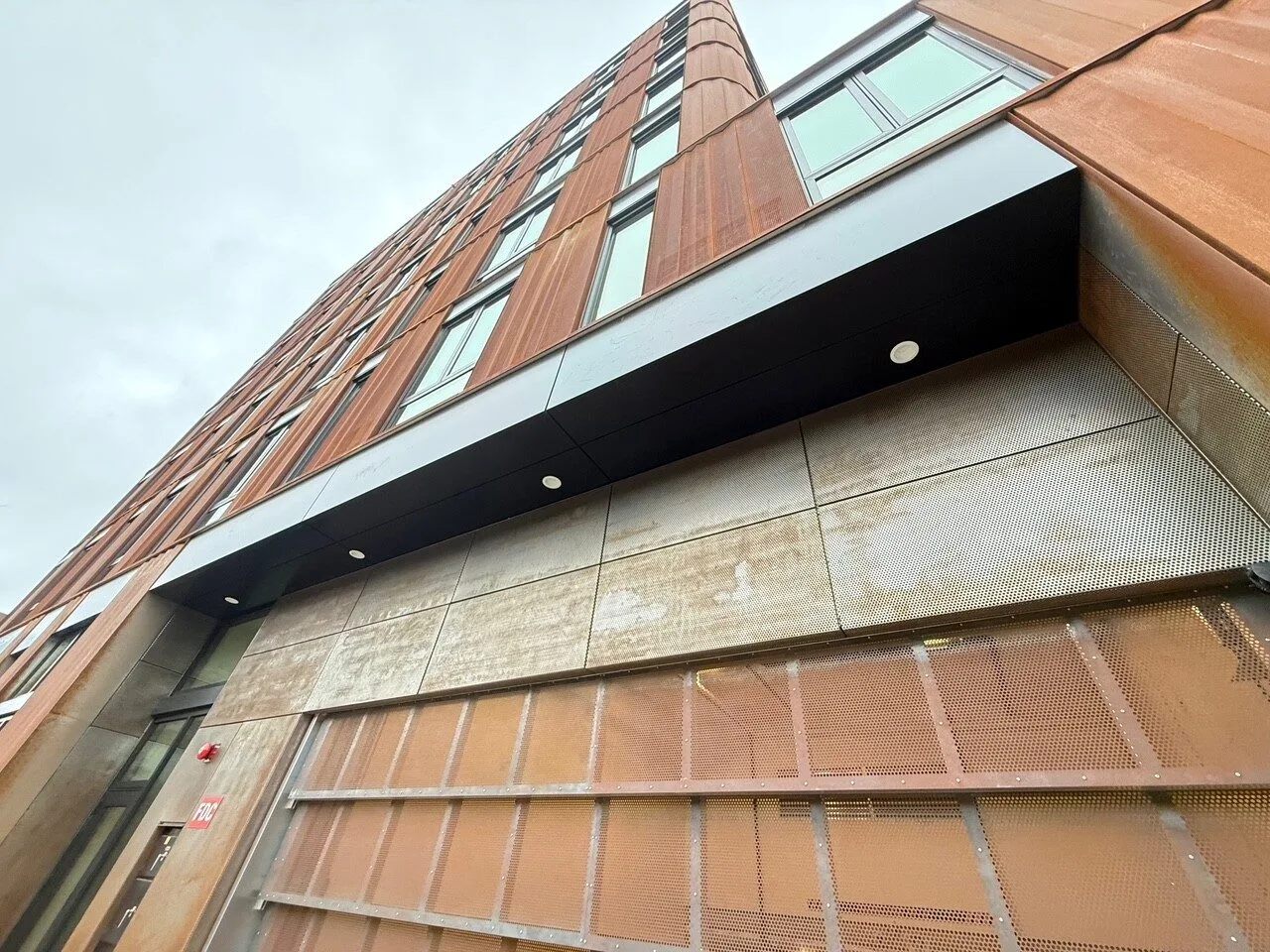

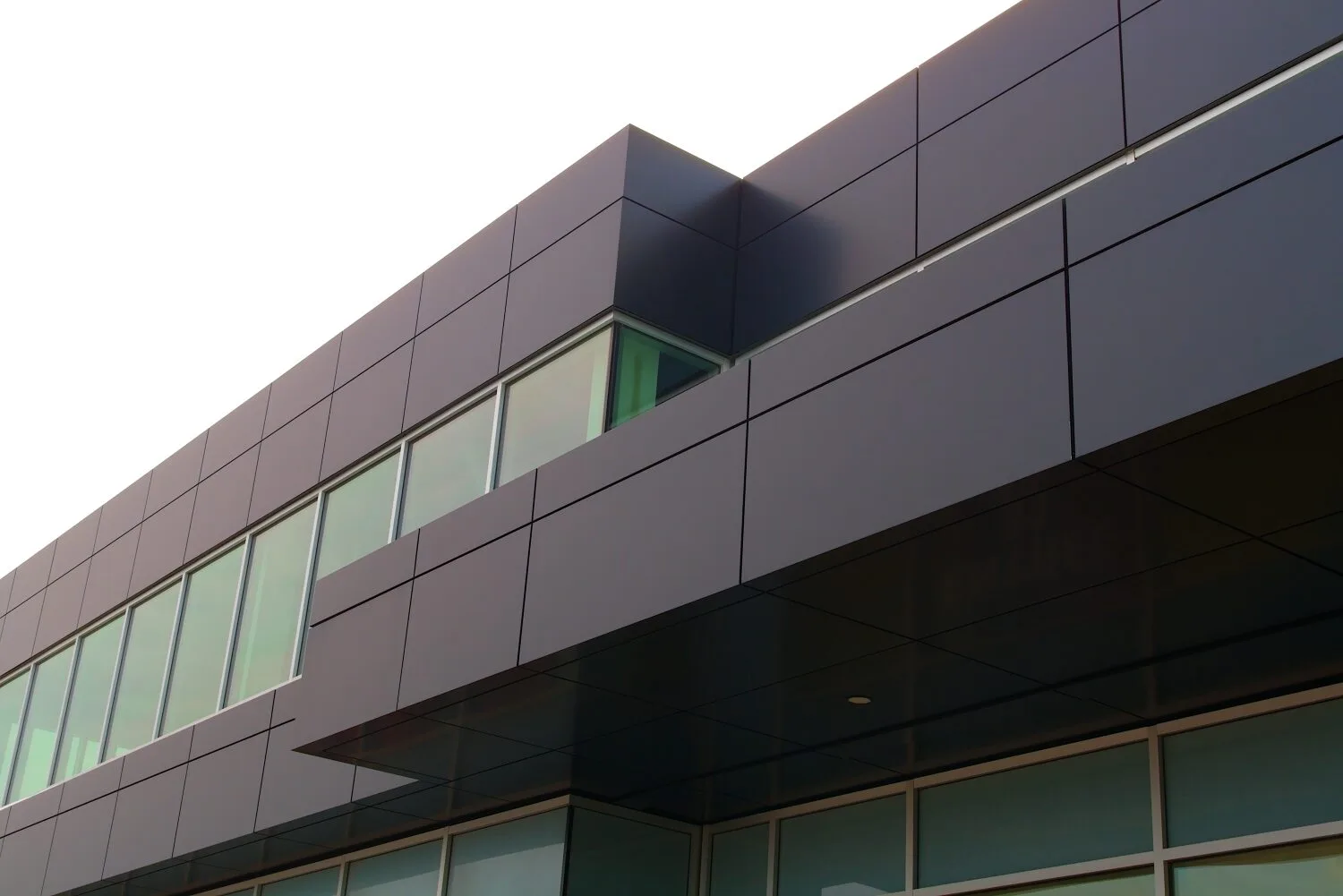

The PDX Series EVO is the standard specification for commercial ACM panel facades across the Pacific Northwest. Aluminum composite panels are lightweight, durable, and available in virtually any PVDF color, making them the most versatile cladding material for new construction and renovation projects. From office buildings and retail centers to multifamily housing and healthcare facilities, the Series EVO is specified when architects and developers need a high-end facade appearance with proven fire performance.
The Series EVO system is designed for rainscreen applications. The panel clips to an extrusion subframe, leaving a ventilated air gap between the panel and the building's substrate. This rear-ventilated configuration improves moisture management, reduces thermal bridging, and allows individual panels to be removed and replaced without disturbing surrounding panels. Compatible with standard commercial stud framing and CMU backup walls throughout the Pacific Northwest.
Materials We Work With
We stock and fabricate in galvanized steel, prefinished steel, aluminum, copper, and stainless steel for all brake-formed work. For ACM panel systems, we work with established brands including Alpolic, Alucobond, Vitrabond, and Reynobond. All are available in PVDF Kynar coatings with custom color matching.
Don't see your preferred manufacturer? We work with most major ACM and aluminum panel brands. Contact us to discuss your specific material requirements.
Ready to Order PDX Series EVO Panels?
Upload your drawings or send us your specs. We'll get you a detailed quote within one business day.
