Aluminum Honeycomb Panel System
PDX Series 200 aluminum honeycomb panels are architectural sheet metal panels backed by a rigid aluminum honeycomb core, combining high structural performance with lightweight construction. Tested to AAMA seismic movement standards (AAMA 501.4) and ASTM structural performance requirements (E330/E330M), the Series 200 is engineered for demanding commercial applications across Oregon and Washington. The non-progressive panel replacement design means individual panels can be swapped out without removing adjacent panels. This reduces long-term maintenance costs. Available in 22-gauge galvanized steel or .040" aluminum with a 40-year paint warranty. Fabricated in Portland, Oregon by PDX Panels LLC.
The Series 200 provides a cost-effective alternative to full composite panels while maintaining the appearance and durability that commercial projects demand. The aluminum honeycomb core delivers exceptional flatness and resistance to panel bow. Critical for large-format facade panels and soffit applications.
Materials
- 22-gauge pre-finished galvanized steel
- .040" pre-finished aluminum
- Other materials available upon request
- Adhered aluminum honeycomb core
- 40-year paint warranty on finish coating
- Fabricated in Portland, OR. Fast delivery throughout the Pacific Northwest.
Technical Specifications
Verified data from PDX Panels product sheets.
Maximum Panel Size
3'-9" × 9'-8"
Optimum Panel Widths
21" and 13"
Optimum Panel Heights
117", 57", and 37"
System Weight
2.8 lb/sf² (22-gauge panel)
Face Materials
22-gauge pre-finished galvanized steel or .040" pre-finished aluminum
Paint Warranty
40-year warranty on finish coating
Testing & Ratings
The PDX Series 200 has been independently tested to the following standards. Architects and specification writers can reference these certifications for project submittals and approval documentation.
Water Penetration Using Dynamic Pressure
Seismic Movement
Air Penetration
Water Penetration
Structural Performance
Features & Benefits
Why the Series 200 is specified for commercial projects across Oregon and Washington.
Easy Installation
Quick, efficient, non-progressive design allows simple panel replacement without disturbing surrounding panels.
Cost-Effective
Affordable alternative to composite panels without compromising quality or performance.
Low Maintenance
Durable, weather-resistant construction requires minimal upkeep over the life of the building.
40-Year Paint Warranty
Long-lasting color retention with superior coatings. Superior resistance to fade, chalk, and UV degradation.
Lightweight & Strong
High strength-to-weight ratio reduces structural load on the building without sacrificing rigidity.
Sustainable
Made with recyclable materials. Supports eco-friendly and LEED building projects.
Customizable
Available in various colors, finishes, and sizes to meet any commercial project specification.
LEED Contributions
The PDX Series 200 supports LEED certification credits applicable to green building projects.
MR 4
Recycled Content
SS7.2
Cool Color Paint System
MR 5
Regional Manufacturing
Applications

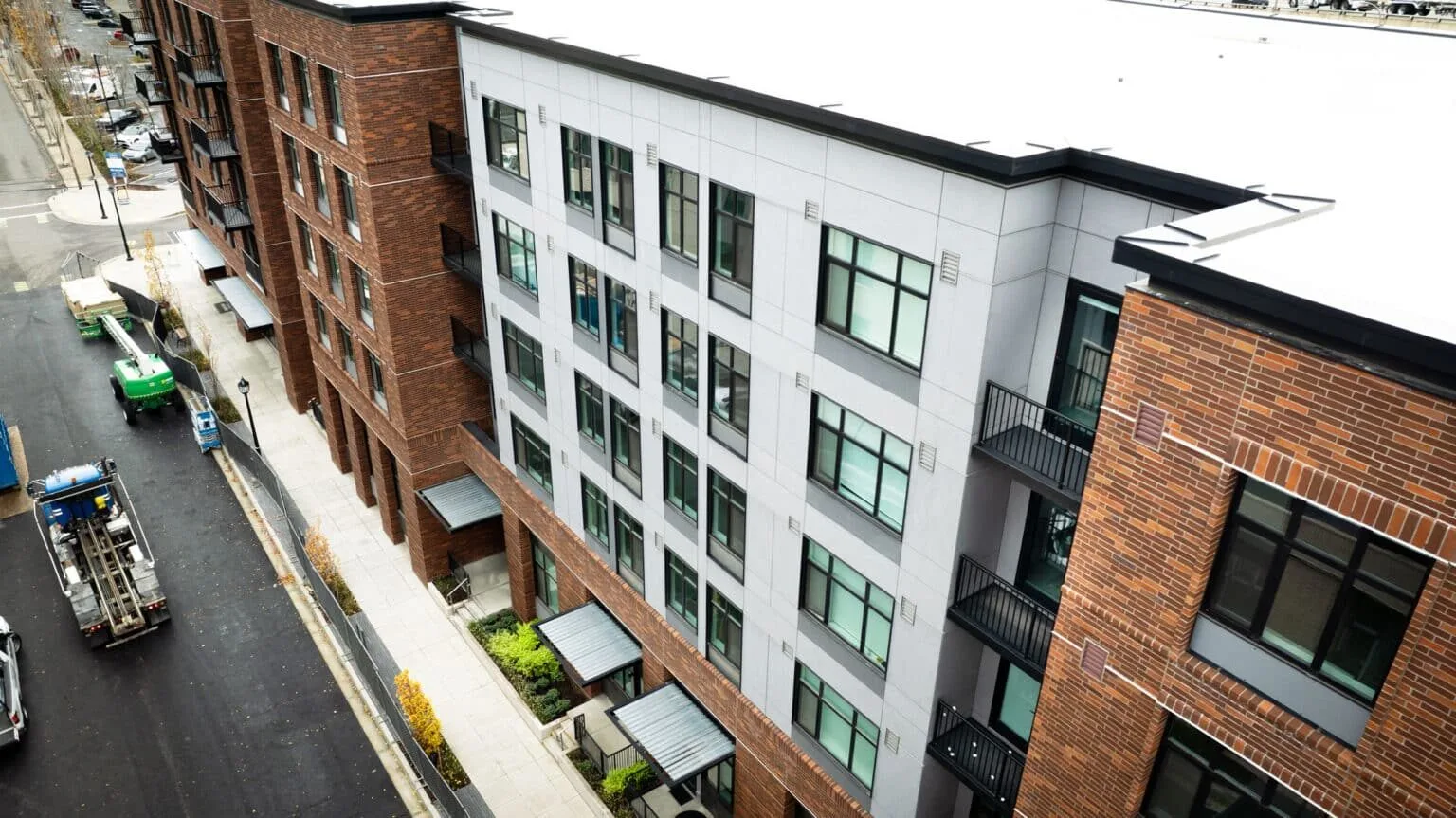

The PDX Series 200 honeycomb panel system is specified for commercial projects that need a high-performance, lightweight panel with a clean architectural appearance. The non-progressive replacement design and 40-year paint warranty make it well suited for high-visibility commercial facades, canopy soffits, column covers, and feature walls where long-term appearance is critical.

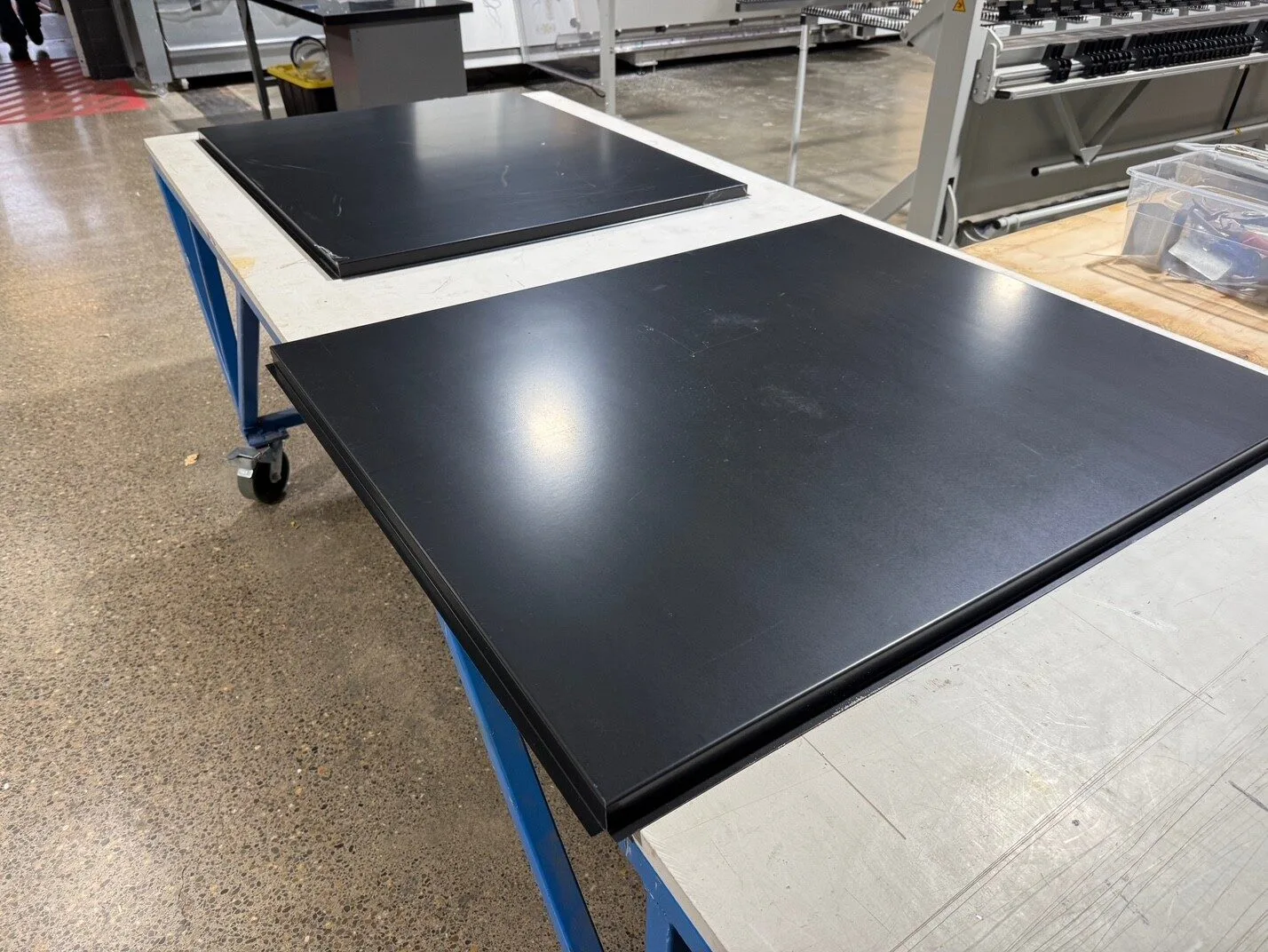

Available in 22-gauge galvanized steel or .040" aluminum, the Series 200 can be finished to any color or texture to match project specifications. PDX Panels fabricates every order at our Portland, Oregon facility and ships throughout Oregon, Washington, and the broader Pacific Northwest.
Aluminum Honeycomb Panel Questions
What are aluminum honeycomb panels?
Aluminum honeycomb panels are sandwich panels made of two metal faces bonded to a lightweight aluminum honeycomb core. The core keeps the panel flat and rigid at a fraction of the weight of solid metal. That makes honeycomb panels a strong fit for large commercial facade panels, canopy soffits, and column covers where flatness matters.
How are honeycomb panels different from ACM panels?
ACM panels bond two thin aluminum sheets to a solid core material. Honeycomb panels use an open aluminum honeycomb core instead, which adds rigidity and keeps large panel faces flat. PDX Panels fabricates both systems in Portland: the Series EVO ACM panel system and the Series 200 honeycomb panel system.
Compare with the PDX Series EVO ACM panel systemWhere does PDX Panels supply honeycomb panels?
Every honeycomb panel order is fabricated at our Portland, Oregon shop. We deliver to commercial projects across Oregon, Washington, and the Pacific Northwest. Send your drawings or panel sizes through the quote form and we respond within one business day.
